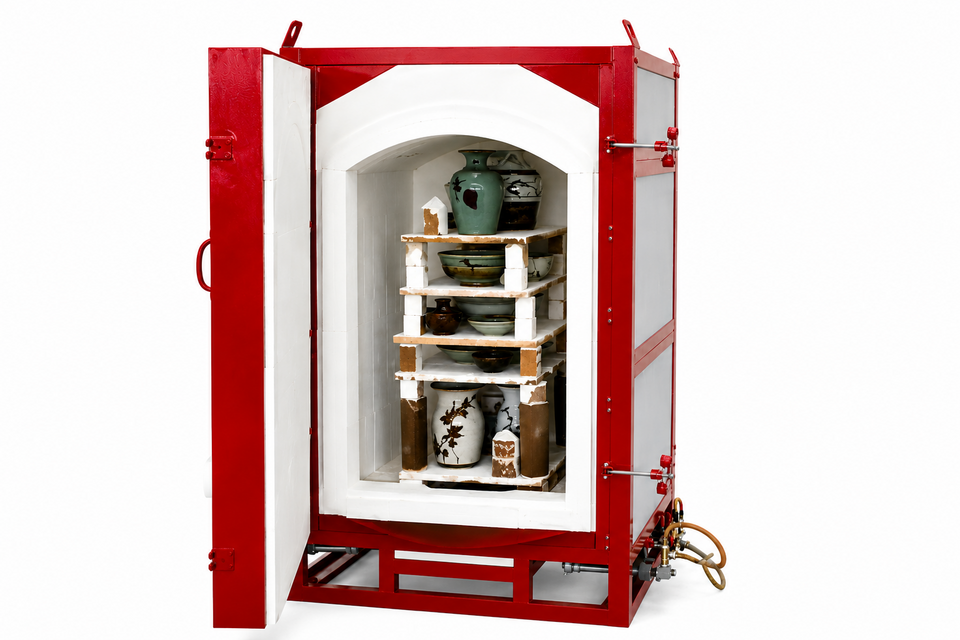

Through the use of modern materials and innovative design we have developed a range of easily fired, fuel efficient kilns. These kilns are “corner fired” with groups of burners firing through end walls at opposite corners. The burners have sealed nozzles and burn gas in fixed proportion with combustion air.

All kilns have a typical down-draft design and use inspirating (natural draft) burners and are therefore totally independent of electricity. These kilns are intended to be fired “by hand” usually with the aid of a digital pyrometer. They have no flame failure protection devices.

Specifications
External Dimensions: 1200 mm wide x 1380 mm deep x 1800 mm high
Internal Dimensions: 550 mm wide x 750 mm deep x 1100 mm high
Burners: 4 x Natural Draft Gas Burners
Weight: Approx. 1475 kg

Recommended Kiln Furniture
Shelves (SAG002): 10 x 450 x 330 x 16 mm Shelves
Prop Set (SAG031):

• 16 x 25 mm
• 16 x 50 mm
• 16 x 75 mm
• 12 x 100 mm
• 12 x 125 mm
• 8 x 150 mm
• 4 x 200 mm
