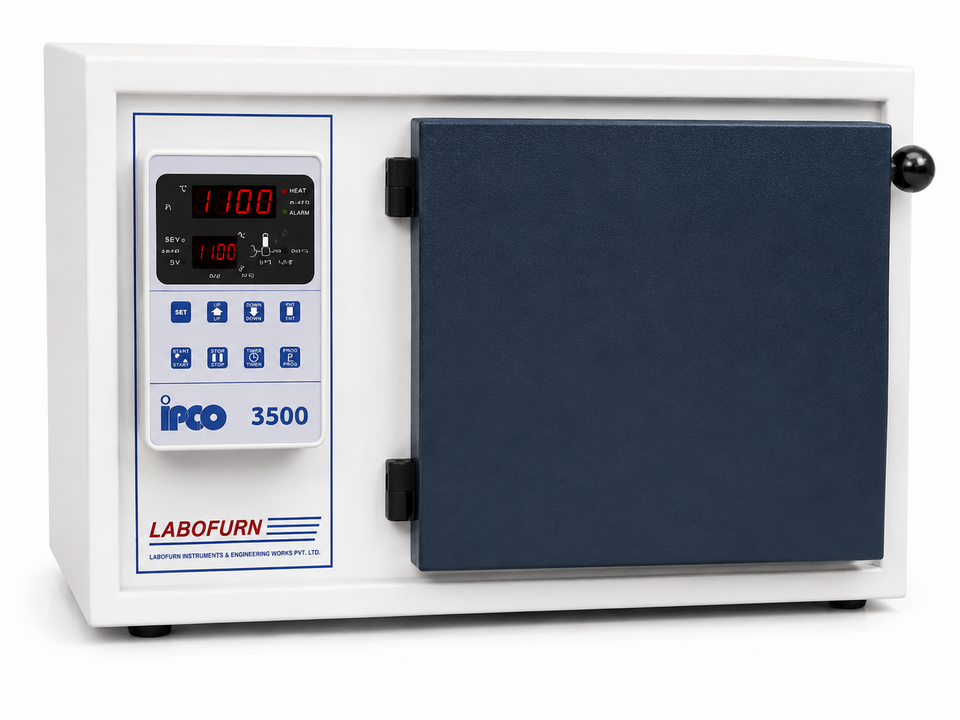

Muffle Furnaces

Applications

Features

Elements concealed behind alumina muffle

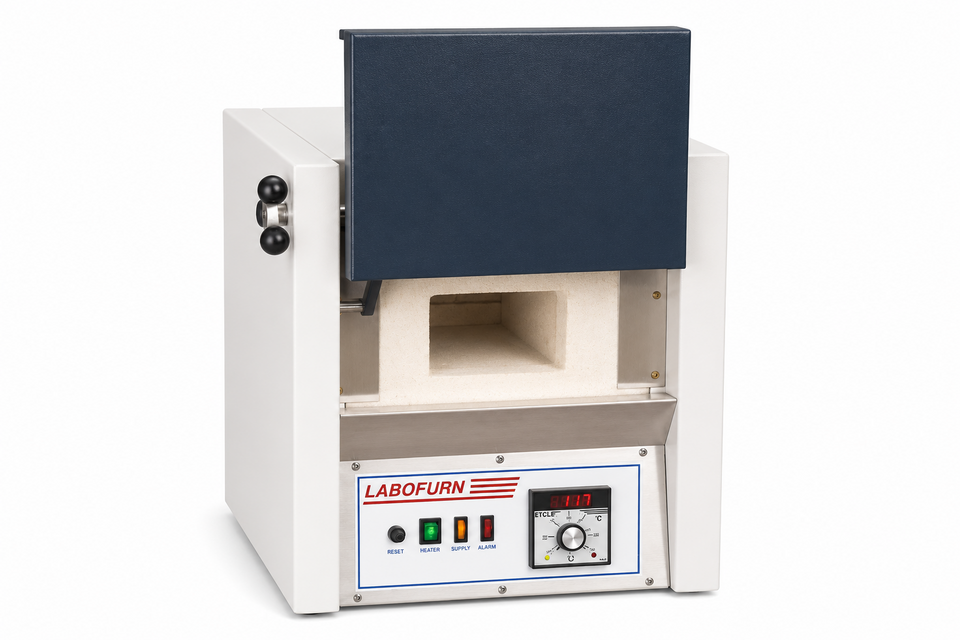

Lift-up door for maximum operator safety
Chimney fitted as standard equipment
Modern ceramic fibre insulation contributes to fast heating cycles, energy savings and low shipping weight.
Excellent temperature uniformity maximum 1200 ºC
Digital PID set point or micro-processor based programmable controllers are standard.
All elements are isolated when the door is open, by action of door opening a limit switch breaks the circuit to the supply contactor.

Specifications

MODEL	EMF 35	EMF 72	EMF 260
CHAMBER DIMENSIONS width: depth: height:	150 mm 230 mm 90 mm	180 mm 350 mm 117 mm	300 mm 450 mm 195 mm
EXTERNAL DIMENSIONS width: depth: height:	480 mm 460 mm 550 mm	580 mm 600 mm 670 mm	620 mm 690 mm 665 mm
TEMPERATURE (maximum operating)	1200°C	1200°C	1200°C
VOLTAGE	220 volt 50 Hz	220 volt 50 Hz	220 volt 50 Hz
CONNECTION	1 phase neutral earth	1 phase neutral earth	1/2 phase neutral earth
POWER SUPPLY PROTECTION (delay-action fuse)	12A 2.6 kW	15A 3.3 kW	2 x 15A 6.6 kW
(by customer)	Automatic circuit breaker
WEIGHT (packed)	40 kg	75 kg	144 kg
BOTTOM LOAD (max recommended)	5 kg	10 kg	20 kg
VOLUME OF WORKING CHAMBER	3.1 litres	7.3 litres	26 litres
CONTROLLERS	Digital setpoint controllers with PID confrol functions or multi step micro processors are standard.
