Specifications
External Dimensions
Overall Rail length  9 900mm
Length                    3 000mm
Width                     1 700mm  including electrical box
Height                    2 100mm

Internal Dimensions
Length                   2 350mm
Width                    1 005mm
Height                   1 250mm

Shelf Size: 450 x 330 x 16mm – 14 shelves per level
Mass Approx: 2500 kg
Power: 96.5 kW
Current: 145 Amps per phase

These kilns are robustly built in heavy steel sections.
Frames are mild steel, epoxy coated.
Cars run on roller bearing wheels and engineered rails.

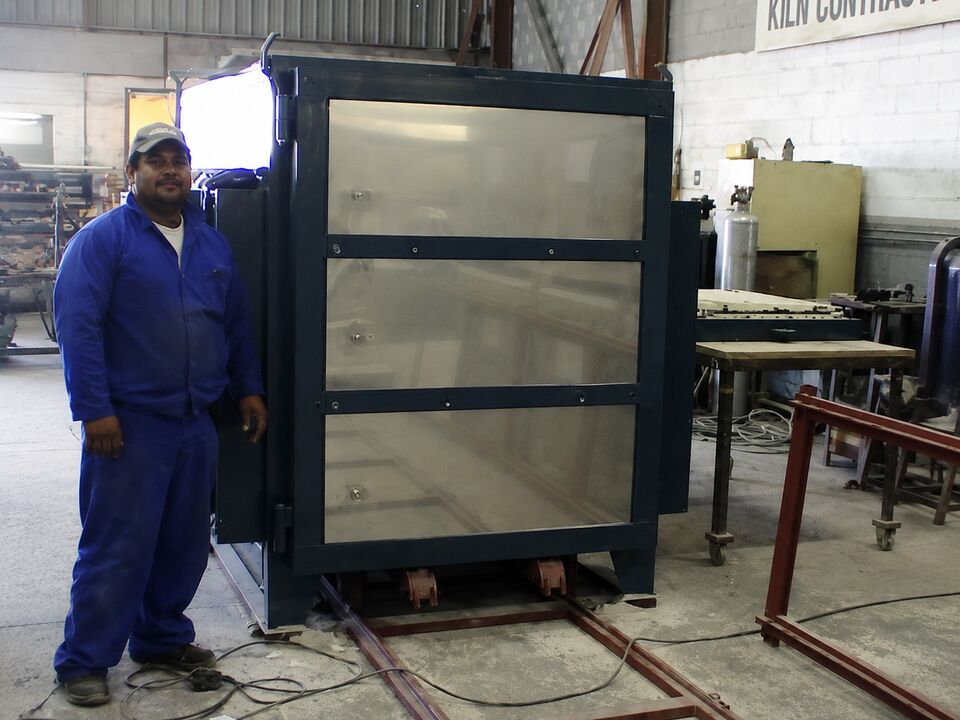

Cladding is 316 grade stainless steel.
Cooling is through four large vents in the arch.
Doors close onto ceramic fibre door seals.
The insulation comprises 114mm insulating brick (imported) and 50mm secondary insulation (usually ceramic fibre based).

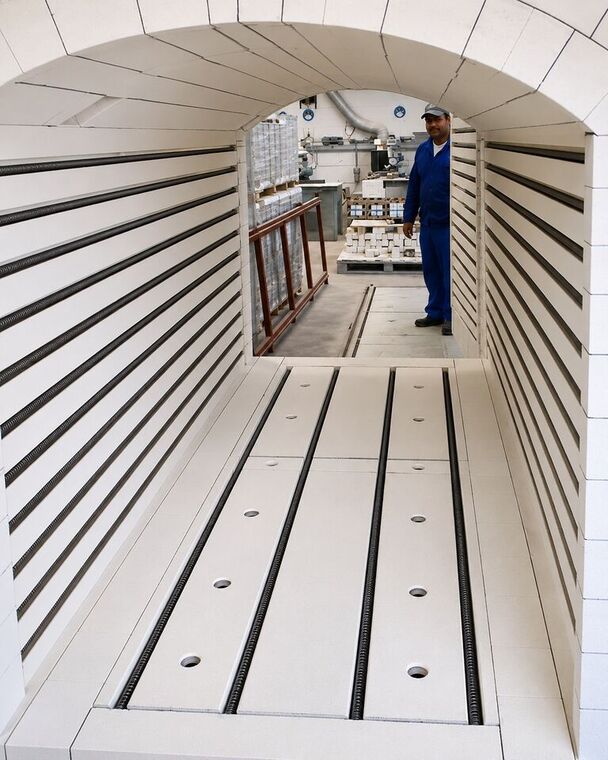

Elements are Kanthal A1

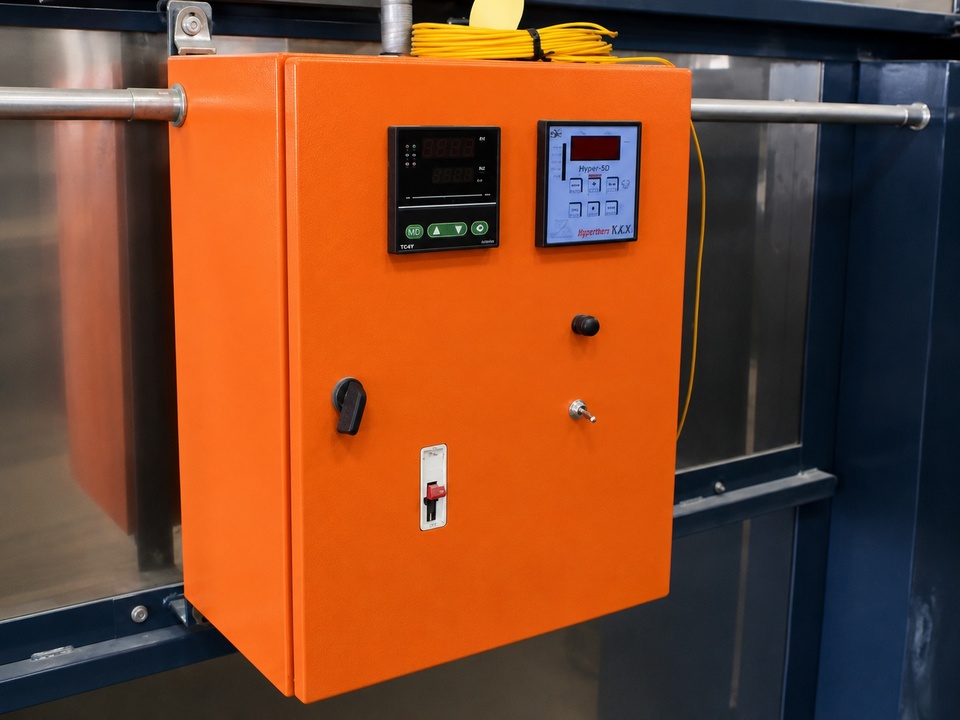

Large electrical boxes have hinged covers
All wiring is silicone insulated
Under floor seals are mechanical and totally effective
