Specifications

External Dimensions
Overall Rail length  7 000 mm
Length                    1 700 mm
Width                      1 200 mm
Height                    1 940 mm

Internal Dimensions
Chamber width         800 mm
Chamber depth      1 500 mm
Chamber height      1 200 mm

Shelf Size: 450 x 330 x 17mm - 10 shelves per level
Mass Approx: 1600 kg
Power: 45 kW
Current: 68 Amps per phase

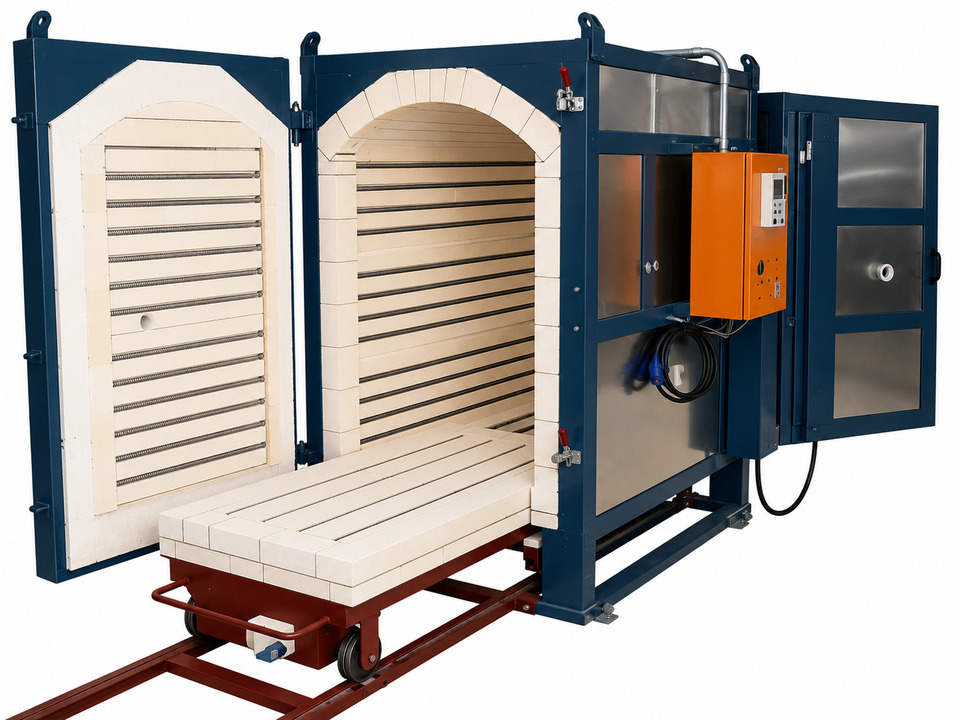

These kilns are robustly built in heavy steel sections.
Frames are mild steel, epoxy coated.
Cars run on roller bearing wheels and engineered rails.
Cladding is 316 grade stainless steel.
Cooling is through four large vents in the arch.
Doors close onto ceramic fibre door seals.
The insulation comprises 114mm insulating brick (imported) and 50mm secondary insulation (usually ceramic fibre based).
Elements are Kanthal A1
Large electrical boxes have hinged covers
All wiring is silicone insulated
Under floor seals are mechanical and totally effective
